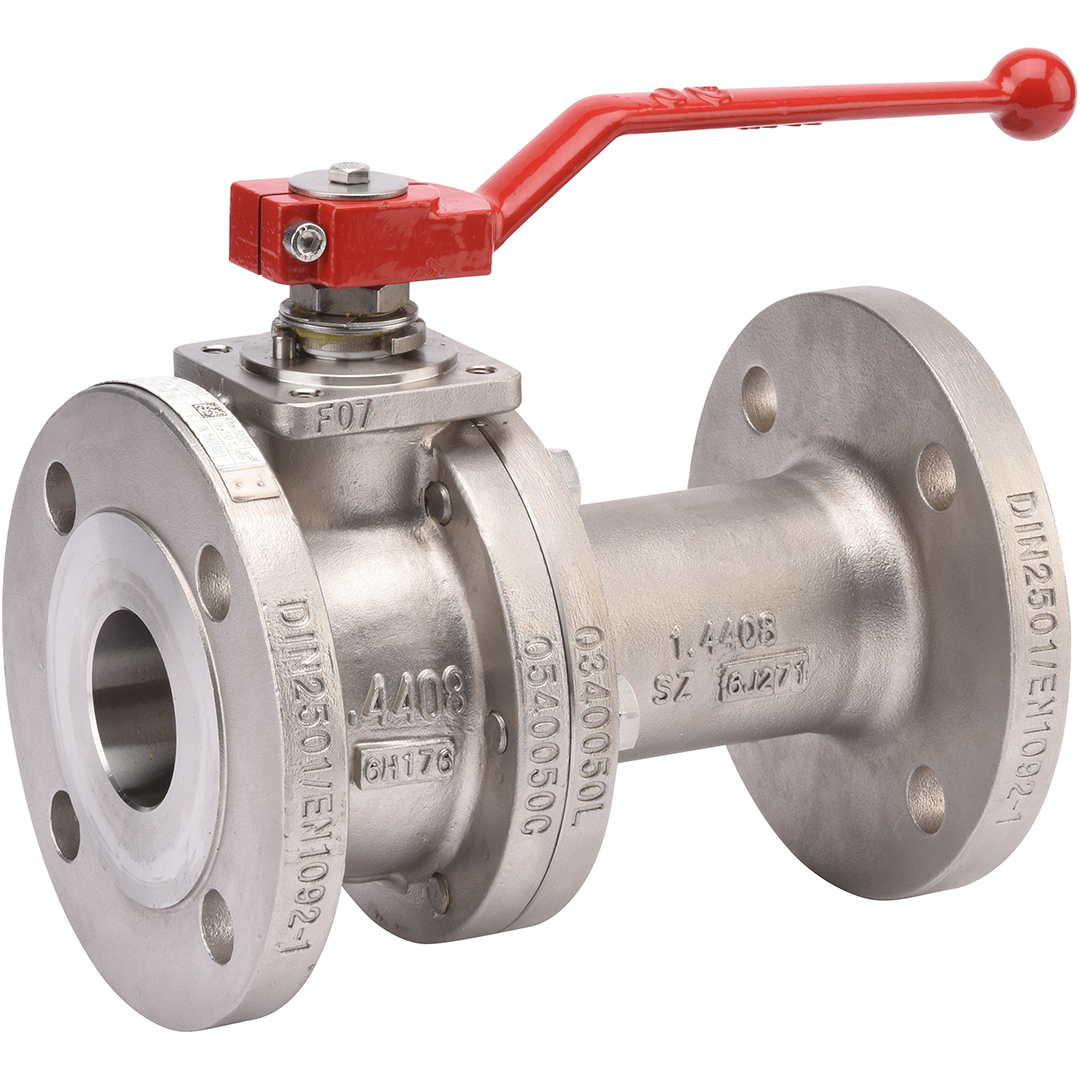

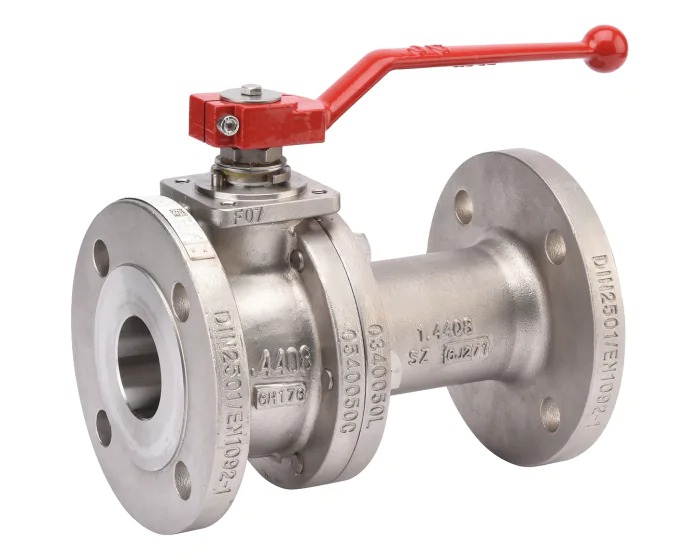

The 340IIGF series ball valve, 2-piece body in stainless steel with glass-filled PTFE seat, PN40 flanged attachment, short DIN, Split Body JC range, fire safe, ATEX compatible.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| NACE MR0175 | Yes |
| Fire safe standard | ISO 10497:2004 |
| SIL | SIL 3 |
| EN face-to-face standard | EN 558 Series 1 |
| DIN face-to-face standard | DIN 3202 F1 |
| Brand | JC VALVES |
| Antistatic device | Yes |
| Steam | Yes |
| Degassing hole | Yes |
| Opening device | Handle |
| Fugitive emissions standard | ISO 15848-1 |
| ATEX atmosphere | Group II Cat. 2G/2D |
| ATEX compatible | Yes |
| DN | DN65 - 2''1/2 |
| Face to Face (mm) | 290 |
| Fluid | Hydrocarbons. gas |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Seats | PTFE-Glass |
| TS max (°C) | 230 |
| TS min (°C) | -50 |
| Ball valve design | Split body |
| Warranty period | 5 years |
| Handle type | Red lever |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN65 - 2''1/2 | 316IIGF065 | S1007066 |
€843.64
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN80 - 3'' | 316IIGF080 | S1007067 |
€1,201.94
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN100 - 4'' | 316IIGF100 | S1007068 |
€1,636.47
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN125 - 5'' | 316IIGF125 | S1007069 |
€2,931.41
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN150 - 6'' | 316IIGF150 | S1007070 |
€2,957.86
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN200 - 8'' | 316IIGF200 | S1007071 |
€8,871.03
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN15 - 1/2'' | 340IIGF015 | S1007072 |
€198.09
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN20 - 3/4'' | 340IIGF020 | S1007073 |
€245.84
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN25 - 1'' | 340IIGF025 | S1007074 |
€291.77
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN32 - 1''1/4 | 340IIGF032 | S1007075 |
€417.80
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN40 - 1''1/2 | 340IIGF040 | S1007076 |
€492.07
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN50 - 2'' | 340IIGF050 | S1007077 |
€652.79
(excl. btw)
|
add to cart |
